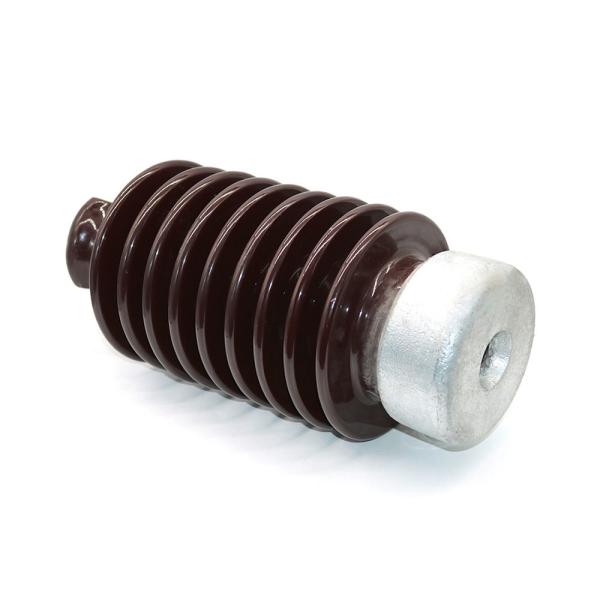

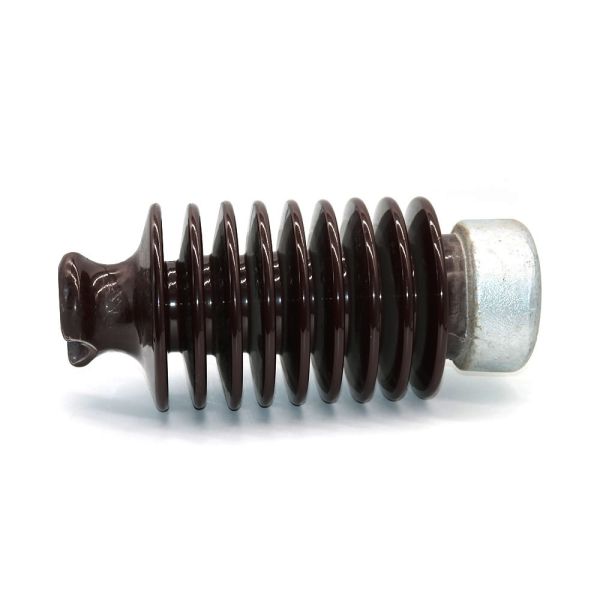

OEM Available ANSI57 Series Line Post Type Porcelain Insulator Glazed F Neck

Brand Name : CPE

Model Number : ANSI 57-2

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 5000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Light gray

Material : Porcelain C-120

Application : Transmission and distribution of electric power

Standard : ANSI

Size : Customized Size

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

OEM Available ANSI57 Series Line Post Type Porcelain Insulator glazed f neck insulator

Descriptions:

1. Line post insulators shall conform in all respects to the requirements of ANSI standard.

2. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed.If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973).

3. Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, or
aluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.

OEM Available ANSI57 Series Line Post Type Porcelain Insulator Glazed F Neck

Technical requirements:

1.Creepage distance: 559mm
2.Cantilever strength: 12.5kN
3. Low frequency flashover voltage: Dry: 100kV Wet: 70kV
4. Critical impluse flashover voltage: Positive: 160kV Negative: 205kV
5. Radio Influence voltage: Test voltage to ground: 22kV

OEM Available ANSI57 Series Line Post Type Porcelain Insulator Glazed F Neck

Pre-sales service:

Choose the proper reactor type

Installation recommendations and to provide technical information

Satisfied users of the special design requirements

After-sales service:

Offer professional equipment installation instructing

Provide spare parts for wearing parts(such as post insulator, bolt, etc.)
