Gray Glazed Station Post Electrical Porcelain Insulator 8.9kN ANSI TR-208 OEM

Brand Name : CPE

Model Number : TR-208

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Gray

Material : Porcelain C-120

Application : Transmission and distribution of electric power

Standard : ANSI

Size : Customized Size

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

Gray glazed 8.9kN Station Post Porcelain Insulator ANSI TR-208 / OEM

Description:

We offers a wide range of porcelain station post insulators. For decades, these products have demonstrated reliable
performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.

Specification:

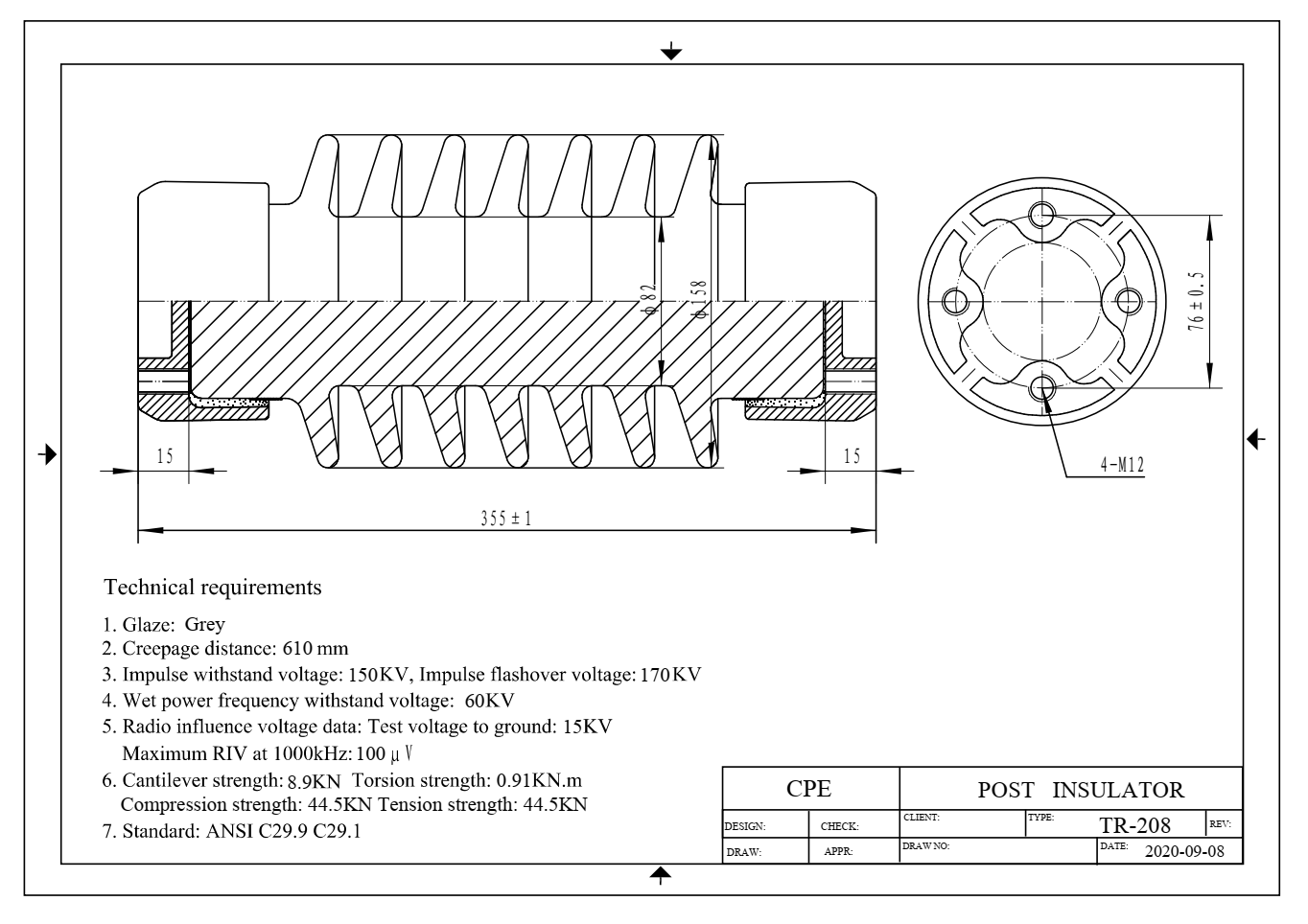

Gray Glazed Station Post Electrical Porcelain Insulator 8.9kN ANSI TR-208 OEM

ANSI CLASS	Creepage distance (mm)	Torsion strength (N.m)	cantilever strength (kN)	Lower frequency flashover voltage		Critical impulse flashover voltage		Impulse withstand voltage (kV)	Weight (kgs)
				Dry(kV)	Wet(kV)	Positive (kV)	Negative (kV)
TR-208	610	904	8.9	110	75	170	250	150	11

Features:

Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.

Competitive advantages:

Reasonable insulation structure high reliability of inter-turn insulation.

Stainless steel flange low magnetic inductivity high resistivity.

Convenient transportation and flexible installation.

Low loss

Low temperature rise

High mechanical strength, strong weather ability.

Outstanding crack resistance

Low thermal expansion coefficient
