Glazed 12.5kN ANSI 57-3S Horizontal Line Post Insulator

Brand Name : CPE

Model Number : ANSI 57-3S

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Brown

Material : Porcelain C-120

Application : Transmission and distribution of electric power

Size : Customized Size

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

Transmission Line Post Porcelain Insulator ANSI 57-3S/ OEM available/ brown

Descriptions:

1. Line post insulators shall conform in all respects to the requirements of ANSI standard.

2. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed.If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973).

3. Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, oraluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.

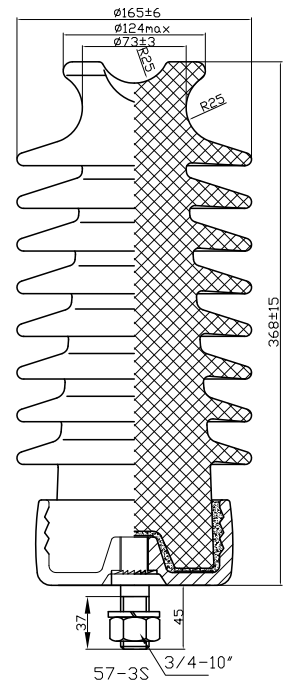

Glazed 12.5kN ANSI 57-3S Horizontal Line Post Insulator

Specification:

1. Glaze color: Light gray
2. Creepage distance: 737mm

3. Cantilever strength: 12.5kN
4. Power frequency fiashover voltage -Dry: 125KV
5. Power frequency fiashover voltage -wet: 95KV
6. Standard: ANSI

Competitive advantages:

Our company focus on electric products, marketing, services and logistics. It is an important manufacturer and export trader with several decades of experience in designing, researching, manufacturing, testing and logistics.
